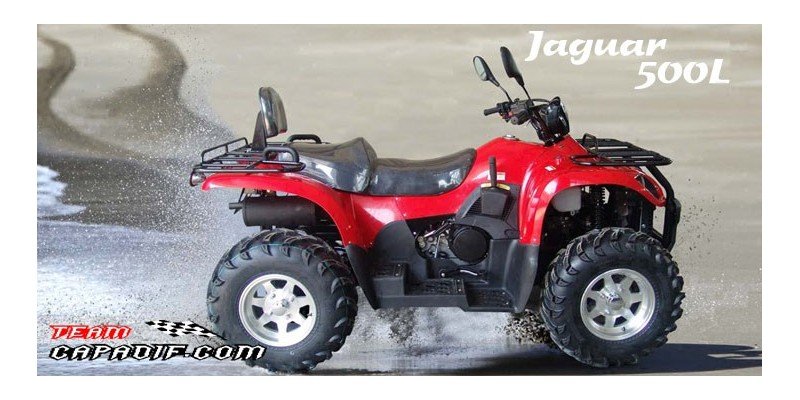

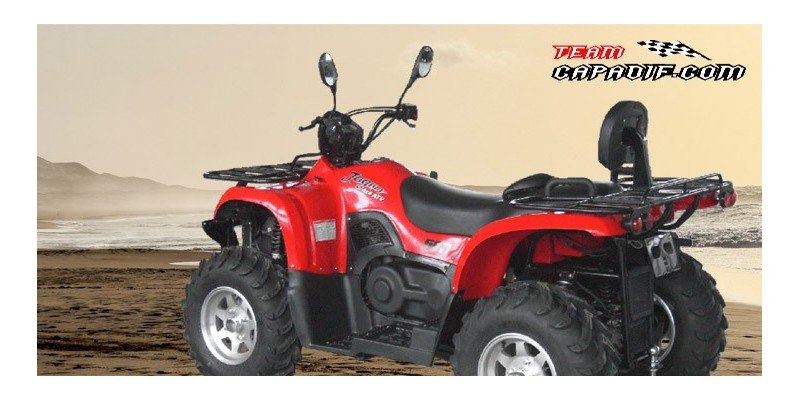

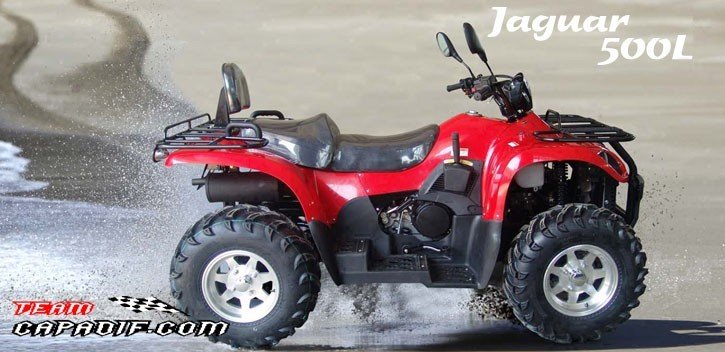

KAZUMA JAGUAR QUAD 4X4 500L Approved 2 people
PRICE UK HT 4 041,32 €
QUAD KAZUMA JAGUAR 4X4 500L
€4,890.00
Tax included
KAZU500L
KAZUMA JAGUAR QUAD 4X4 500L Approved 2 people
PRICE UK HT 4 041,32 €
KAZUMA JAGUAR QUAD 4X4 500L Approved 2 people
Quad ideal for long walks, comfortable, 4X4, in all situations, you will appreciate its maneuverability, power and robustness
Export requested prices C&F quads JAGUAR
|
Model KAZUMA JAGUAR |
500 Court |
500 Long |
|
Road homologation |
1people |
2people |
|
Length |
2.00m |
2.25m |
|
Width |
1.15m |
1.15m |
|
Height |
1.20m |
1.20m |
|
Weight |
327kg |
370kg |
|
Seat height |
880mm |
880mm, 960mm Passenger |
|
|
|
|
|
Engine |
Mono-cylinder 498,6cc, tree overhead cam, 4-valve, liquid-cooled, 4-stroke, carburetor depression (KEIHIN.JAPAN), automatic gearbox to drive |
|
|
Operating Temperature |
-20 ° C to + 45 ° C |
|
|
Diameter cylinder |
92mm |
|
|
Stroke cylinder |
75mm |
|
|
Compression ratio |
10.2: 1 |
|
|
Lubrication |
oil under pressure |
|
|
Minimum consumption |
3,47kg / h |
|
|
Maximum power |
6300tr to 24kW / min 32,2CH / DIN |
|
|
Maximum power homologated |
5000tr to 14kW / min 18,8CH / DIN |
|
|
Maximum torque |
4800tr to 40nm / min |
|
|
Maximum torque approved |
3000tr to 28nm / min |
|
|
Ignition |
Electronic CDI |
|
|
Starter |
Electric and manual starter |
|
|
Fuel tank capacity |
20L |
|
|
Transmission |
cardan shafts and differentials, 3 modes: 4x2, 4x4, 4x4 with locked differential |
|
|
Change 2WD 4WD |
speed switch with 4 positions: long, short, neutral and reverse; electronic security |
|
|
Suspensions |
Independent double wishbone 4-wheel and adjustable |
|
|
Brakes |
hydraulic disc brakes, drive the right foot or right hand rear brake / Carpark left hand |
|
|
Max speed |
80km / h |
|
|
Wheel size in inches |
Front: 25x8-12, Rear: 25x10-12; option before order: 26x9-12, Rear: 26x11-12 |
|
|
Rack and abilities |
before: 35kg, rear: 70kg |
|
|
Counter |
Instrumentation Speedometer, tachometer, odometer, trip meter, gear position, 4x4 indicator |
|
|
Electricity |
12V battery, plug accessories (GPS, phone, ...), possibility of making agricultural |
|
|
Options |
Electric winch, alloy wheels, trailer hitch, for windshield, trunk, snow chains, multi |
|
For after-sales service, you will find all the spare parts on the website
2 YEAR WARRANTY back parts warehouse
Quad comes preassembled Carefully read the information about installation in our terms and conditions
QUAD considered agricultural
REGISTRATION: vehicles with a European approval. This series allows approval to register the vehicle in the whole European union bills and European Certificate of Conformity supplied with quads You will have to pay VAT for your country if you want to register the quad
KAZU500L
